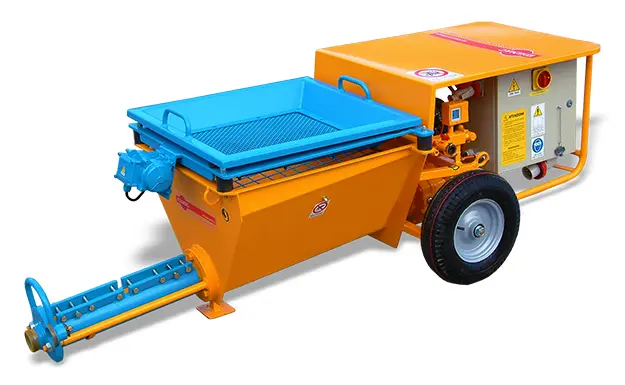

Universal worm plastering machine PC 500 L and PC 500 I


Worm plastering and transporter machine PC 500 L - PC 500 I Edilmac for all type of mortars and plasters


DESCRIPTION



Worm plastering machine PC 500 L or PC 500 I with inverter, 400 V (three-phase), is a machine with horizontal worm pump with a long stator, it's used to pumping all kinds of the modern wet plasters, premixed by concrete mixer or continuous mixers like L 25 T and L 60, planetary mixer R 50 T.
In depth, worm plastering machine PC 500 L or PC 500 I spraying premixed wet mortars cement, lime or gypsum based, special renders fiber reinforced based for restructuring, anti-salt, anti-humidity, fireproofing, fire protection, waterproofing, insulating, light plaster, cocciopesto; moreover it transports wet mortar for self-levelling screed, floor screed and masonry mortars with max aggregate size up to 8 mm.
With vibrating screen ( on request ) it's possible to spraying all type of traditional mortars with max. aggregate size up to 6 mm.
With a portable screw compressor with min. output of 500 l/min, it can be spray special wet renders with high density for artificial basins, dams, tunnels and bridges.
The worm pump PC 500 I is the top of the gamma, with electronic variation of output capacity from 20 to 45 l/min and wide range of kits and accessories ,is able to pump any type of wet mortars and plasters.
Another characteristic of this series are the simple utilization, high reliability of pump body, reduced maintenance and very quickly clean.



TECHNICAL DATA


PC 500 L PC 500 I
Voltage 400 V three-phase 400 V three-phase
Pump motor 5,5 kW 5,5 kW ( 7,5 kW on request)
Air compressor 1,5 kW (on request 1,8 kW - 350 l/min) 1,5 kW (on request 1,8 kW - 350 l/min)
Maximum working pressure 10 - 15 bar 15 - 20 bar
Maximum spraying aggregate size up to 6 mm up to 6 mm
Maximum transport aggregate size up to 8 mm up to 8 mm
Pump output capacity up to 35 l/min. adjustable by inverter from 20 to 40 l/min.
Maximum pumping distance 50 m 60 m
Maximum pumping height 15 m 15 - 20 m
Hopper capacity 140 l 140 l
Length x width x height 2200 x 900 x 740 mm 2200 x 900 x 740 mm
Loading height 550 mm 550 mm
Total weight 260 kg 280 kg
Standard Hose equipment 30 m (20 m + 10 m) 30 m (20 m + 10 m)
Other material in a standard equipment Instructions manual, spray gun or transport gun, toolbox, accessories and declaration of conformity. Instructions manual, spray gun or transport gun, toolbox, accessories and declaration of conformity.


OPTIONAL KITS AND ACCESSORIES


  PC 500 L PC 500 I
Plastering machine for TRADITIONAL wet mortars.
It needs vibrating screen and spray gun.
(suggest R 50 T pan mixer)
It needs vibrating screen and spray gun.
(suggest R 50 T pan mixer)
Plastering machine for PREMIXED wet mortars.
Suggest to use L 25 T continuos mixer and L 60 for silo application. Suggest to use L 25 T continuos mixer and L 60 for silo application.
Plastering machine for SPECIAL high dense or adhesive based renders.
Request air compressor three-phase build-in 350 l/min or portable screw compressor min. output 500 l/min
Request air compressor three-phase build-in 350 l/min or portable screw compressor min. output 500 l/min


DETAILED PICS


Vibrating screen for traditional mortars pumped by screw plastering machine PC 500 L - PC 500 I rear view of worm plaster sprayer PC 500 L - PC 500 I

Vibrating screen for traditional mortars.

Rear view of machine.
