Pistons plastering machine for traditional mortar EVUTECH

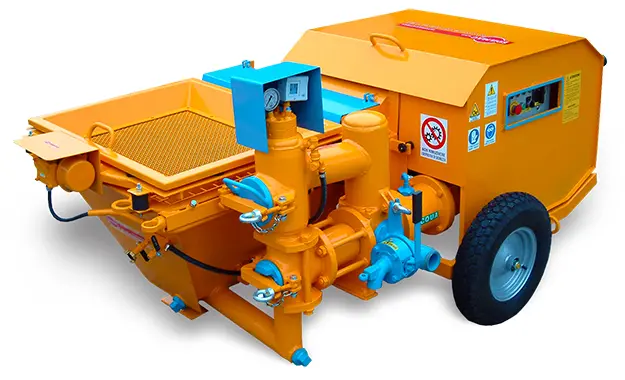

Piston plastering machine for traditional mortars and ready-mix plasters EVUTECH Edilmac



Pistons pump EVUTECH is a plastering and transporter machine for traditional mortars and premixed wet mortars particularly for restructuring, powered on 400 V three-phase, which is based on Edilmac proprietary principle of "double sided" pistons pump which have a particular axial execution, that expands the range of pumped mortars, always guaranteeing flow continuity and mortar spraying uniformity in an excellent way and without no compromise.
The pistons plastering machine EVUTECH guarantee high performance and big hopper capacity, so it's suitable for medium and large buildings company, for spraying and transport traditional mortars and plasters based on cement and / or lime, on indoor, outdoor walls and ceilings, fine concrete ( up to 12 mm), spritz beton on panels and metallic net, jet of slab, anti-retirement or expansive mortars, for consolidation of damaged or degraded structures, jet of micropiles, transport of traditional and ready-mix masonry mortars, execution of first spraying liquid mortar, most of the ready-mix mortars and plasters prepared apart by continuous mixer, ecological, thixotropic and at compensated shrinkage mortars, special plasters for renovations.
The pistons pump EVUTECH is distinguished also for excellent reliability even in the most difficult jobs conditions and continuously for many hours.



  • Build-in high performance air compressor; reliable and long lasting.
  • Spray gun with pneumatic remote control.
  • Electric vibrating screen with a specific command switch.
  • Internal agitator in the hopper to maintain well amalgamate the mortars that are pumping.
  • Anti-clogging safety system against pump operation overpressures on standard equipment.
  • Greater consistency of the plaster applied to the wall, compared to manual application or other pumps.
  • Robust and easy to handle despite its weight, being provided with big 520 mm anti-puncture rubber wheels with motion bearings, extractable grip for hand towing to easy transport in all surfaces; it's present also hooks for lifting and carry.
  • To mixing the pumped mortars, it can be combined with planetary mixer R 50, continuous mixers Edilmac L 25 T or for silo L 60, any type of concrete mixers, muller or others.
  • High durability of pumping pistons, more than 35.000 m² of plasters sprayed.
  • Quick and easy maintenance and cleaning.


Voltage 400 V three-phase 60 Hz
or 230 V three-phase 60 Hz
Pump motor 4 kW
Air Compressor 1,8 kW
Hopper agitator motor 0,75 kW
Electric vibrating screen 0,25 kW
Maximum working pressure 20 bar
Pumpable aggregate granulometry 0 - 12 mm
Pistons pump flow rate up to 55 l/min
Maximum pumping distance up to 150 m
Maximum pumping height up to 50 m
Hopper capacity 250 l
Length x width x height 2200 x 1400 x 1000 mm
Material loading height 750 mm
Weight 560 kg
Standard Hose equipment 30 m (20 m + 10 m)
Other material in a standard equipment Toolbox, spray gun, operation and maintenance manual, declaration of conformity.


Spray gun of piston plastering machine EVUTECH Edilmac for traditional and ready-mix mortars anti-clogging safety system of piston plastering machine Edilmac Evutech

Spray gun.

Safety system.
